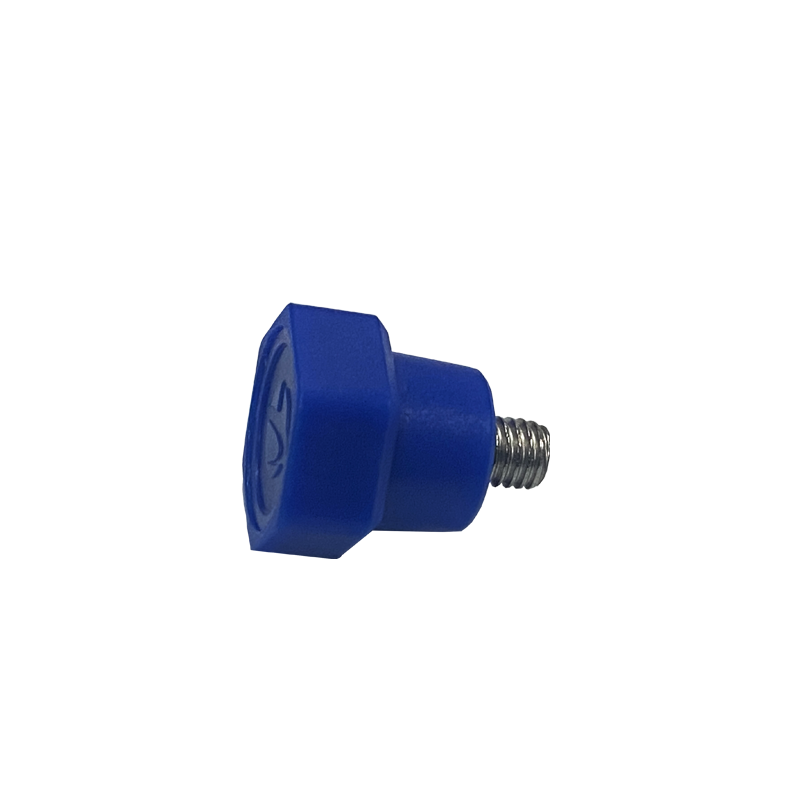

LYM518515 Screw RFID Label丨Screw Tag

LYM518515 Screw RFID Label，Screw Tag，Lassorfid RFID tag，Lassorfid RFID label Ideal for identification and anti-counterfeiting, workpiece marking, location tracking, material sorting, tool coding, recording processing technology data, and diverse other ap

Crafted through precision injection molding of ABS engineering plastic and metal screws, the rugged LYM518515 High-Temperature-Resistant Screw RFID Label excels in demanding settings. It boasts exceptional heat resistance (operating reliably at 65℃) and IP68-rated waterproof protection. Its specialized anti-metal interference design ensures stable performance when affixed directly to metal surfaces, effectively tackling read-through challenges for UHF passive RFID Labels in metallic environments. Engineered for tough industrial duties like anti-counterfeiting traceability, precision work piece identification, equipment positioning, production line sorting, tooling code recognition, and process data logging, this label demonstrates remarkable long-term stability. It withstands harsh conditions—including scorching temperatures, constant wear, corrosive elements, and direct metal contact—with ease. Its tough-as-nails structure and expertly chosen materials guarantee crystal-clear, dependable data transmission even under the most punishing environmental conditions.

Technical parameters of LYM518515 screw Label 丨Screw Tag
specifications ：	M5 x 18.5mm x15mm
Reading time:	0.01MS
Reading type:	Read the card only, read and write the card
Brush writing life:	100,000 times
Encapsulation materials:	modified ABS
frequency ：	13.56MHZ
levels of protection ：	IP68
working temperature ：	-10℃~+65℃
pigment ：	Orange, blue
slug ：	NXP Icode Slix
SC ：	1024 bits/128 bytes (28 erasable data blocks, each 4 bytes)
power supply mode ：	Passive cards
sensing distance ：	0-40mm (depending on the equipment)
number of use ：	Read unlimited times
durable years ：	> 10 years
Storage temperature:	-20℃~+75℃
Anti-metallic properties:	Yes, support for metal surface applications
mechanical stability ：	Axial/ radial compression strength 1000N/500N (10 seconds, static)
chemical resistance ：	A typical laundry and dry cleaning process using chemicals

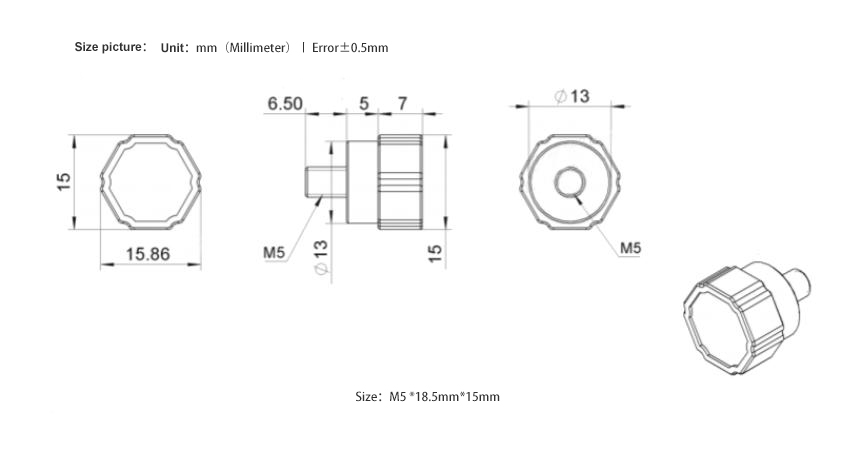

LYM518515 screw RFID Label size丨Screw Tag

LYM518515 screw Label application field丨Screw Tag

Ideal for identification and anti-counterfeiting, workpiece marking, location tracking, material sorting, tool coding, recording processing technology data, and diverse other applications.It performs reliably in demanding conditions involving high-temperature wear resistance, corrosion resistance, metal bonding, and other harsh environments.
